 | KX-327XS |  |  | |
 |
||||
| Part-no.: 12.87120 | ||||
| Description | Value | ||
| | frequency kHz | 32,768 | |
| | operating temperature in °C | -20 ~ +70 | |
| | frequency tolerance at +25°C in ppm | ±30 | |
| | temperature tolerance at -20° ~+70°C in ppm/°C2 typ | -0,034 ±0,006 | |
| | load capacitance CL in pF | 12,5 | |
| | series resonance R1 in Ohm max. | 65k | |
| | aging (first year) in ppm | ±5 | |
| | shunt capacitance Co in pF max. | 2 | |
| | drive level in mW | 0,05 | |

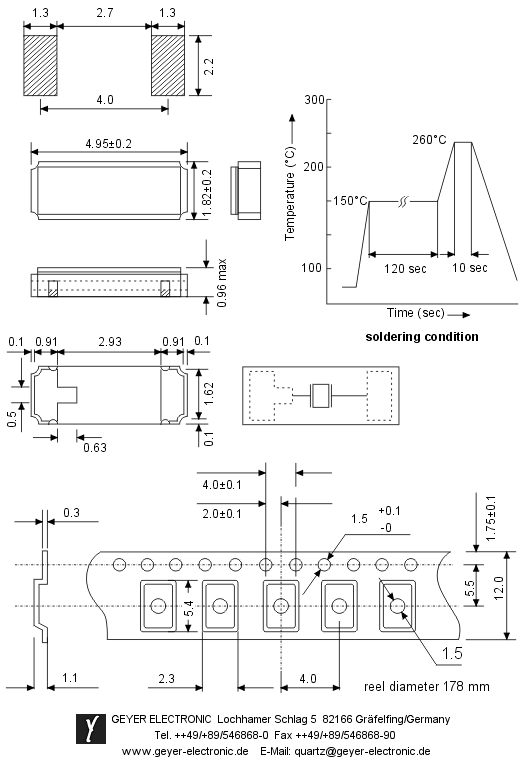

| | size l/w/h in mm | 4,95/1,82/0,96 | |
| | RoHS started from date code | May, 2005 | |
| | contents of reel in pcs. | 3000 | |
| | - Datasheet pdf | ||
|  |
